Melting Point Apparatus

SS MP1299 Melting Point Apparatus is a microprocessor controlled miniature furnace type instrument used for melting point determination only. It works on opto-coupled I.R. transmission based technology for automatic melting point detection with accurate results.

This model is suitable for crystalline samples only, where the sample becomes transparent at the time of melting. It is not suitable for dark or colored samples. The unit includes USB to PC interface and memory storage for 100 samples with location, making it ideal for QC and documentation work.

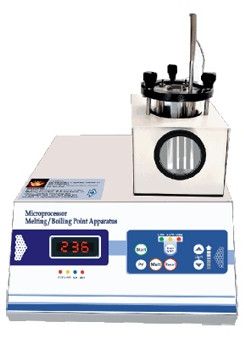

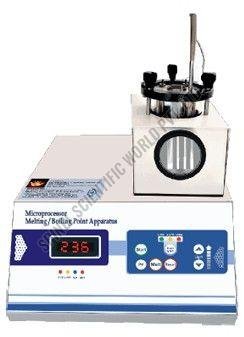

SSW MP1290 Boiling or Melting Point Apparatus is a microprocessor based instrument used for accurate determination of melting point and boiling point. It is suitable for chemical, pharmaceutical, QC and educational laboratories. The unit provides clear observation with glare-free illumination and magnifier, along with PID controlled heating and adjustable ramp rates.

SSW MP1292 Melting / Boiling Point Apparatus is a microprocessor controlled instrument suitable for dark colored and any colored samples. It consists of a miniature furnace with programmable ramp rate heating and advanced viewing system through a large magnifier with front & rear illumination (light intensity adjustable).

The instrument provides audio & visual indication and the reading is protected from power failure until RESET is activated. Once melting is detected, the furnace turns OFF automatically and cooling fan turns ON. It also supports USB connectivity and memory storage for sample results.

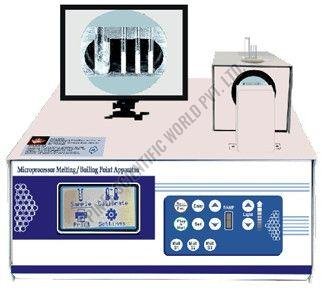

SSW MP1293 Melting / Boiling Point Apparatus is a microprocessor controlled instrument with camera attachment and TFT display screen for clear viewing of samples in capillaries. It is designed for accurate melting and boiling point determination with high precision heating control and easy observation.

The instrument provides front & rear glare-free illumination for stain-free viewing and supports sample-wise HOLD function using S1, S2 & S3 keys. The HOLD reading is protected from power failure until reset. It uses automatic ramp rate with PID technology for reliable and repeatable results, making it ideal for pharmaceutical, chemical and plastic industries.

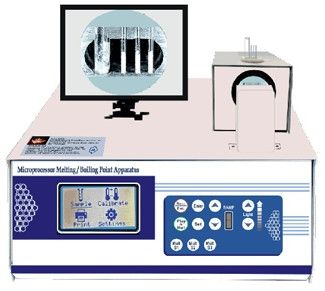

SSW MP1294 Melting / Boiling Point Apparatus is a microprocessor controlled unit suitable for dark colored and any colored samples. It comes with automatic ramp rate heating and a silicon oil bath system for accurate boiling and melting point determination.

The apparatus includes an inbuilt motorized stirrer with variable speed control for uniform temperature distribution (better than magnetic stirring at high temperature). The silicon oil bath is made of high temperature toughened glass (approx. 200 ml capacity) and is covered with a teflon top cover with oil immersion heater. It provides 3 capillary holes and one 6mm test tube hole for boiling point testing of liquids.

It also supports applications like viscosity/flow point temperature effect and molecular weight determination by Rast’s method with suitable accessories. Front & rear glare-free illumination with magnifier ensures clear observation and HOLD function keeps reading protected from power failure until RESET.

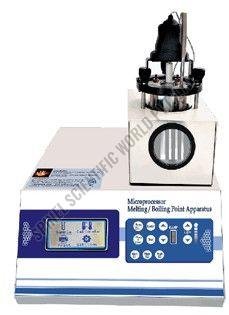

SSW MP1296 Melting / Boiling Point Apparatus is a microprocessor controlled instrument suitable for dark colored and any colored samples. It comes with selectable ramp rate heating and a high performance viewing system for accurate observation and results.

The unit includes an inbuilt motorized stirrer with variable speed control, glare-free background illumination and cylindrical silicon oil bath made of high temperature toughened glass (approx. 200 ml). The bath is covered with a teflon top cover fitted with oil immersion heater and includes 3 capillary holes + 6mm test tube hole for boiling point determination.

It supports programmable ramp rate heating from 2°C to 40°C/min with UP/DOWN keys and auto selection. The apparatus also provides USB connectivity and sample memory storage, making it suitable for QC and research labs.

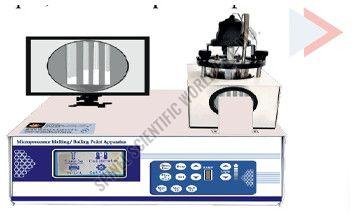

SSW MP1297 Melting / Boiling Point Apparatus is a microprocessor controlled model with camera attachment and TFT display screen for viewing samples in capillaries using a high resolution camera. It is designed for automatic operation with programmable ramp rate heating and reliable HOLD memory protection.

This model works with PID closed loop temperature control and selectable ramp rate heating from 2°C to 40°C/min (UP/DOWN keys + Auto mode). It also supports fully automatic “Sample Fill and Forget” operation, where programming and HOLD action remain protected from power failure, even during multiple power interruptions.

Note: Sample should be transparent at the time of melting (not suitable for dark colored samples at melting stage).

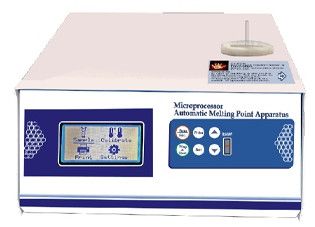

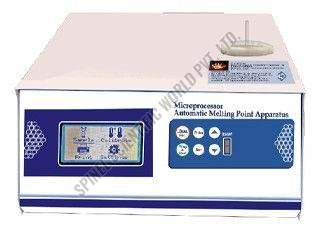

SSW MP1300 Melting Point Apparatus is a microprocessor controlled miniature furnace type instrument with graphical display. It works on opto-coupled I.R. transmission based technology for automatic melting point detection and accurate results.

This model is suitable for crystalline samples only, where the sample becomes transparent at the time of melting. It is designed for melting point determination only and provides USB connectivity with large memory storage for laboratory documentation.

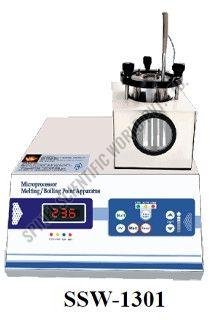

SSW MP1301 Melting / Boiling Point Apparatus is a microprocessor controlled laboratory instrument designed for accurate determination of melting and boiling points. It features a 4 digit LED display with stable temperature control using closed loop PID technology. The unit supports automatic ramp rate heating with selectable ramp modes for reliable and repeatable results.

SSW MP1303 Melting / Boiling Point Apparatus is a microprocessor controlled instrument with programmable ramp rate heating for accurate melting and boiling point determination. It uses closed loop PID temperature control with multi selection ramp rate from 2°C to 40°C/min using UP/DOWN keys, and Auto mode is also available. Ramp rate can be increased or decreased during operation.

This model comes with 128×64 graphical LCD display, 0.1°C resolution, USB to PC interface, and 1000 sample memory with location, making it ideal for QC and research laboratories.
