Ultrasonic Sonication Systems
Leading Manufacturers, Exporters and Wholesaler of Sonicator With Chiller and Ultrasonic Bath Sonicator from Vapi.
| Business Type | Manufacturer, Supplier |
| Type | Sonicator With Chiller |
| ultrasonic frequency | 33 ± 3 KHz |
| Technology | MOSFET / IGBT Based Generator |
| Timer | Inbuilt Digital Timer (0–90 Minutes) |
| Input Voltage | 170V – 270V AC, 50 Hz |
| Temperature Control | Digital Temp Controller (Up To 50°C) |
| Safety Cut-Off | Auto Shut Down At +10°C Above Set Temp |
| Chiller Range | 5°C To Room Temperature |
| Chiller Stability | ±2°C |
| Tank Material | SS 304 Grade, 1.6mm Thick Buffed Finish |
| Drain Valve | 1/2” Ball Valve For Easy Cleaning |
| Transducers | PZT Sandwich Type (PZT4 Crystal APC/Concord Make) |
Sonicator With Chiller is an advanced ultrasonic cleaning and sample processing system designed for efficient dispersion, extraction, degassing, homogenization and laboratory cleaning applications. It is built with microcontroller based digital timer and latest MOSFET/IGBT technology for stable performance and long working life.
The unit supports automatic frequency tuning for maximum ultrasonic output and includes low transducer loss design to deliver strong cleaning action. It is equipped with a digital temperature controller for safe operation. If the temperature rises 10°C above the set temperature, the sonicator automatically shuts down to protect samples and equipment.
The inbuilt chiller maintains controlled temperature conditions with 5°C to Room Temperature range and ±2°C stability, making it suitable for temperature sensitive applications. The tank is made of SS 304 grade (1.6mm thick) with drain valve for easy cleaning. Accessories like basket, lid, manual and power cord are provided as per model.
| Business Type | Manufacturer, Supplier |
| Application | Dispersion,Emulsification,Homogenization,Extraction,Degassing |
| Type | Ultrasonic Bath Sonicator |
| Working Principle | Ultrasonic Sonication For Sample Processing |
| Usage Fields | Biology, Chemistry, Material Science, Food Testing Labs |
| Transducer Type | Imported PZT Type |
| Transducer Mounting | Weld Bond Technique (Bottom Mounted) |
| Ultrasonic Generator | MOSFET/IGBT Based SMPS |
| Power Input | 230VAC |
| Performance | Efficient Particle Agitation & Molecular Bond Disruption |
| Operation | Suitable For Continuous Laboratory Use |

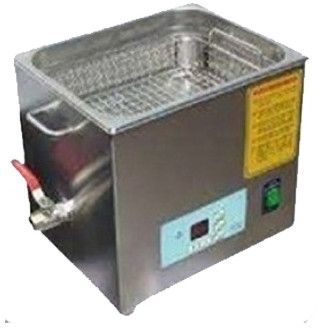

Sonicator is a laboratory instrument used for ultrasonic sample processing where high-frequency ultrasonic energy is applied to agitate particles in liquid samples. It is commonly used for dispersion, emulsification, homogenization, extraction, degassing, and breaking down biological cell structures. Sonicators are widely used in biology, chemistry, material science, food testing, and research laboratories for efficient sample preparation and quality control.
This model is equipped with an imported PZT type transducer bonded at the bottom of the tank using weld bond technique for strong performance and long working life. The ultrasonic generator is built with advanced MOSFET/IGBT based SMPS technology for stable output and efficient operation. The unit works on 230VAC power input.
