Heating Drying Equipment

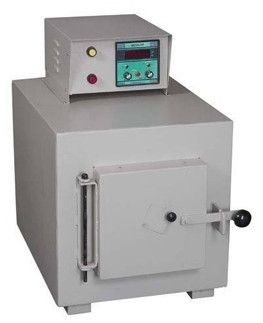

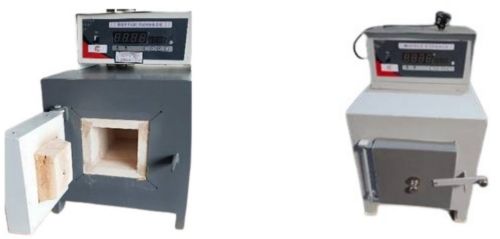

Muffle Furnace is a high temperature heating furnace designed for laboratory and industrial applications such as material testing, heat treatment, ash content testing, and volatile matter analysis. This improved model comes with ceramic fibre wool insulation instead of traditional brick insulation, which reduces overall weight and size and improves heating efficiency.

Due to ceramic fibre insulation, the furnace weight becomes nearly 1/4 and the size reduces by around 30% compared to brick insulated furnaces. It provides faster heat-up time, very low heat loss, and better power saving performance.

The furnace includes a built-in vent port for safe removal of noxious gases and fumes. It also supports connecting an extension pipe for volatile matter analysis. The vent lid is designed to be air-tight for accurate and safe operation.

The outer body is fabricated from thick cold rolled mild steel sheets, rectangular in shape, and placed horizontally with front opening. The inner chamber consists of a refractory muffle of required size, surrounded by ceramic fibre blankets on all four sides and rear to minimize heat loss.

The chamber is fitted with a single front door having 100mm thick ceramic fibre insulation, mounted on heavy-duty hinges and secured with a strong latch for safe sealing.



We offer a brand new Digital Laboratory Hot Plate designed for heating chemicals in chemical labs. Constructed with durable stainless steel, this digital hot plate features a heavy-duty metal top plate and a digital PID temperature controller for precise temperature control. The dual digital LED display shows both set and process values, while the electric resistance heating method ensures efficient heating. With a temperature range from ambient to 300°C, this hot plate is ideal for various laboratory applications. As a leading Manufacturer, Exporter, and Supplier, we provide high-quality equipment for your laboratory needs.

We offer a high-quality Laboratory Hot Air Oven designed for drying applications in pharmaceutical labs. This hot air oven features a digital temperature display, cold rolled mild steel outer body with anti-bacterial powder coating, and a stainless steel 304 inner chamber with round angle structure. It is equipped with 3-inch thick glass wool insulation, Kanthal DSD wire heating elements, PID microprocessor intelligent controller for precise temperature control, and adjustable stainless steel shelves. Ideal for manufacturers, exporters, and suppliers looking for reliable and efficient drying solutions.

We offer a brand new Laboratory Hot Plate made of powder-coated mild steel, ideal for heating chemicals and laboratory samples in chemical labs. This hot plate features a heavy-duty cast iron or mild steel top plate with a black finish, along with a manual rotary temperature regulator for precise temperature control. The electric resistance heating method ensures efficient heating, while the power ON and heating indicator lights provide easy monitoring. Operating at 220-240V AC, this hot plate is perfect for manufacturers, exporters, and suppliers in the industry.

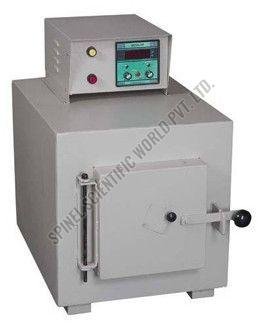

Muffle Furnace is a high temperature heating furnace designed for laboratory and industrial applications such as material testing, heat treatment, ash content testing, and volatile matter analysis. This improved model comes with ceramic fibre wool insulation instead of traditional brick insulation, which reduces overall weight and size and improves heating efficiency.

Due to ceramic fibre insulation, the furnace weight becomes nearly 1/4 and the size reduces by around 30% compared to brick insulated furnaces. It provides faster heat-up time, very low heat loss, and better power saving performance.

The furnace includes a built-in vent port for safe removal of noxious gases and fumes. It also supports connecting an extension pipe for volatile matter analysis. The vent lid is designed to be air-tight for accurate and safe operation.

The outer body is fabricated from thick cold rolled mild steel sheets, rectangular in shape, and placed horizontally with front opening. The inner chamber consists of a refractory muffle of required size, surrounded by ceramic fibre blankets on all four sides and rear to minimize heat loss.

The chamber is fitted with a single front door having 100mm thick ceramic fibre insulation, mounted on heavy-duty hinges and secured with a strong latch for safe sealing.



Laboratory Oil Bath is designed for safe and accurate heating of flasks and reaction vessels at higher temperatures. These oil baths are suitable for laboratory reactions, extraction, analysis and testing where stable temperature control is required. It is equipped with multiple over-temperature protections and a customized PID controller for high accuracy and repeatability.

The unit is available in various sizes for flask capacity ranging from 1 to 20 Liters and can also be customized as per customer requirement. It features double walled stainless steel construction for durability and safety. A floating overshoot alarm is set 5°C above set point and the system includes absolute over-temperature alarm with auto cut-off for safe operation.

Spinel oil bath includes a stainless steel immersion heater with peripheral shape to avoid direct contact with the flask, even if the flask touches the bottom. Temperature range is Ambient +10°C to 350°C.

We offer a brand new Rectangular Laboratory Hot Plate made of powder-coated mild steel, ideal for heating chemicals in chemical labs. This hot plate features a heavy-duty cast iron plate, dual rotary temperature regulators for precise temperature control, and electric resistance heating method. The top plate is rectangular in shape, ensuring efficient heating. Equipped with power and heating indicator lamps, this hot plate is perfect for manufacturers, exporters, and suppliers in the industry.

Vacuum Oven is designed for fast and uniform drying, heating and moisture removal under vacuum conditions. It is ideal for laboratories and industrial applications where oxidation-free drying is required. The oven is triple walled in construction for better insulation and stable performance.

It is fitted with Incoloy sheathed tubular air heaters on side/back walls for efficient heating. The stainless steel inner chamber has round angle structure for easy cleaning and adjustable shelves for flexible loading. The chamber is perforated on left-right/back side for proper air circulation and uniform temperature distribution.

A forced air circulation system with dynamically balanced fan and heavy duty motor ensures consistent heating. The door is sealed with silicon rope/flat gasket to maintain vacuum tight sealing. Safety features include standby thermostat and over-temperature cut-off protection.

The unit comes with PID microprocessor temperature controller, glass observation window, vacuum gauge, and optional features like independent temperature protector and RS485 communication.
