0.9 - 3.50 Lac / Piece
| Business Type | Manufacturer, Supplier |
| Type | Column Washing Pump |
| Pump Head | Single Head With Pulsating Flow |
| Flow Range | 0.01 To 10.00 Ml/min (0.01 Increments) |
| Click to view more | |
Product Details
Flow Precision
±0.1% RSD At 1 Ml/min
Flow Accuracy
±1.0% Of Setting At 1 Ml/min
Maximum Pressure
6000 PSI
Pressure Ripple
≤2.0% At 1 Ml/min (1000 PSI)
Flow Path Material
316 SS, Sapphire, PTFE, PEEK (Optional Haste Alloy)
Operation Mode
Continuous & Timer Mode
Auto Stop Time
1 To 999 Minutes
Display
20×4 LCD Yellow Background
Safety Feature
Pressure Cutoff Auto Stop System
Computer Interface
RS232 Port
Integration
Compatible With Column Oven

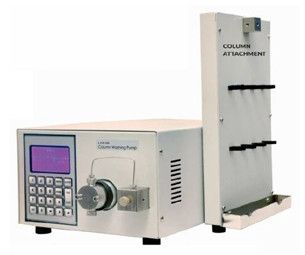

Column Washing Pump is a precision dosing and metering pump designed for column washing and solvent delivery applications. It comes with single head pulsating flow and supports a wide flow range from 0.01 ml to 10.00 ml per minute with 0.01 ml increments. The pump can be integrated with a column oven and is suitable for laboratory and analytical setups.
It offers high flow stability with flow precision ±0.1% RSD and flow accuracy of ±1.0% at defined conditions. The unit supports high pressure operations up to 6000 PSI and includes safety features like pressure cut-off to stop automatically if pressure exceeds the set limit. It also provides continuous and timer operation modes with auto stop time settings.
